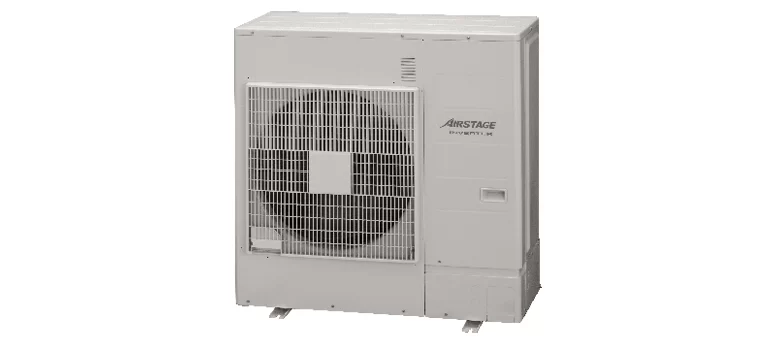

Model: AJT040LCLBH
J-IVS HEAT PUMP RANGE (AJT040LCLBH)
With a compact design and flexible piping options, the J-IVS Series can be installed easily where space can be limited such as homes, shops, and small offices.
| Product Category | Airstage VRF |
| Product Range | J-IVS Heat Pump range |
| Capacity | 12.10kW Cooling 13.60kW Heating |
| Model Number | AJT040LCLB |
FEATURES
- Flexible Piping Options
Piping can be connected by using either separation tubes or headers to suit a variety of project designs.
- Energy Efficient Operation
Smart inverter and DC technology assist these units to achieve top-class energy efficiency.
- Long Piping Capability 180m
Our advanced refrigerant control technology allows us to achieve a total refrigerant piping length of up to 180m.
- Powerful Large Propeller Fan
High performance and low noise realised by the large propeller and angle optimisation.
- Compact Footprint
The smaller footprint design allows for greater installation flexibility.
- Subcool Heat Exchanger
High heat exchanger efficiency is achieved by using an internal projection shape with double pipe construction.
SPECIFICATIONS
| Operation Type | Reverse Cycle |
| Maximum Connectable Indoor Units | 7 |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 12.1 |
| EER Cooling kW/kW | 3.52 |
| COP Heating kW/kW | 4.74 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.215 / 4.354 / 4.433 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.5 / 4.729 / 3.856 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.805 / 5.805 / 6.206 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.502 / 5.01 / 4.292 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 53 / 54 |
| Outdoor Sound Power dBA | 67 |
| Outdoor Unit Dimensions mm (Height x Width x Depth) | 998 x 970 x 370 |
| Outdoor Unit Weight kg | 86.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Operation Range Cooling °CDB (Min to Max) | -5 to 46 |
| Operation Range Heating °CDB (Min to Max) | -20 to 21 |
| Refrigerant Type | R410A |
| Refrigerant Amount g | 4,000 |

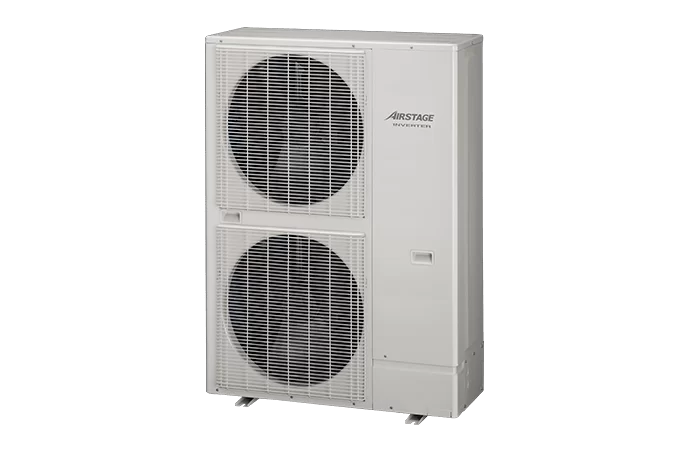

Model: Airstage VRF J-IV (AJY040LBLBH, AJY045LBLBH, AJY054LBLBH)
J-IVS HEAT PUMP RANGE (AJT040LCLBH)
With a compact design and flexible piping options, the J-IVS Series can be installed easily where space can be limited such as homes, shops, and small offices.
The space-saving and long piping design of the J-IV Series allows for flexible installation on roofs or balconies of small and medium-sized buildings.
| Available in | Reverse Cycle – 12.1kW, 14.0kW, 15.5kW |
| Refrigerant | R410 |
FEATURES
- Flexible Piping Options
Piping can be connected by using either separation tubes or headers to suit a variety of project designs.
- Energy Efficient Operation
Smart inverter and DC technology assist these units to achieve top-class energy efficiency.
- Long Piping Capability 180m
Our advanced refrigerant control technology allows us to achieve a total refrigerant piping length of up to 180m.
- Powerful Large Propeller Fan
High performance and low noise realised by the large propeller and angle optimisation.
- Compact Footprint
The smaller footprint design allows for greater installation flexibility.
- Subcool Heat Exchanger
High heat exchanger efficiency is achieved by using an internal projection shape with double pipe construction.
SPECIFICATIONS
Model: AJY040LBLBH
| Rated Capacity Range | 4 HP |
| Max. Number of Connectable Indoor Units*1 | 1 – 11 |
| Connectable Capacity of Indoor Units | 6.1 – 18.1 kW |
| Power Source | Phase | Single phase 1 |
| Voltage | 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 12.1 kW |
| Nominal Heating | 12.1 kW | |
| Max. Heating | 13.6 kW | |
| Input Power | Cooling | 2.90 kW |
| Heating | 2.39 kW | |
| Nominal Heating | 2.39 kW | |
| Max. Heating | 2.80 kW | |
| EER | Cooling | 4.17 W/W |
| COP | Nominal Heating | 5.06 W/W |
| Max. Heating | 4.86 W/W | |
| Airflow Rate | 6200 m³/h | |
| Sound Pressure Level*2 | Cooling | 50 dB(A) |
| Heating | 52 dB(A) | |
| Sound Power Level | Cooling | 65 dB(A) |
| Heating | 67 dB(A) | |
| Max. External Static Pressure | 30 Pa | |
| Compressor Motor Output | 3.75 kW | |
| Heat Exchanger Fin | Blue fin | |
| Net Dimensions | Height | 1334 mm |
| Width | 970 mm | |
| Depth | 370 mm | |
| Net Weight | 117 kg | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2088 | |
| Charge | 4.8 kg (10 CO2eq–T) | |
| Connection Pipe Diameter | Liquid | φ9.52 mm |
| Gas | φ15.88 mm | |
| Total Pipe Length | 180 m | |
| Max. Height Difference
(Outdoor Unit: Upper/Lower) | 50 / 40 m | |
| Operation Range | Cooling | -5 to 46 °CDB |
| Heating | -20 to 21 °CD |
Model: AJY045LBLBH
| Rated Capacity Range | 5 HP |
| Max. Number of Connectable Indoor Units*1 | 1 – 12 |
| Connectable Capacity of Indoor Units | 7.0 – 21.0 kW |
| Power Source | Phase | Single phase 1 |
| Voltage | 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 14.0 kW |
| Nominal Heating | 14.0 kW | |
| Max. Heating | 16.0 kW | |
| Input Power | Cooling | 3.57 kW |
| Heating | 2.97 kW | |
| Nominal Heating | 2.97 kW | |
| Max. Heating | 3.55 kW | |
| EER | Cooling | 3.92 W/W |
| COP | Nominal Heating | 4.71 W/W |
| Max. Heating | 4.51 W/W | |
| Airflow Rate | 6400 m³/h | |
| Sound Pressure Level*2 | Cooling | 51 dB(A) |
| Heating | 55 dB(A) | |
| Sound Power Level | Cooling | 65 dB(A) |
| Heating | 69 dB(A) | |
| Max. External Static Pressure | 30 Pa | |
| Compressor Motor Output | 3.75 kW | |
| Heat Exchanger Fin | Blue fin | |
| Net Dimensions | Height | 1334 mm |
| Width | 970 mm | |
| Depth | 370 mm | |
| Net Weight | 117 kg | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2088 | |
| Charge | 5.3 kg (11.1 CO2eq–T) | |
| Connection Pipe Diameter | Liquid | φ9.52 mm |
| Gas | φ15.88 mm | |
| Total Pipe Length | 180 m | |
| Max. Height Difference
(Outdoor Unit: Upper/Lower) | 50 / 40 m | |
| Operation Range | Cooling | -5 to 46 °CDB |
| Heating | -20 to 21 °CD |
Model: AJY054LBLBH
| Rated Capacity Range | 6 HP |
| Max. Number of Connectable Indoor Units*1 | 1 – 14 |
| Connectable Capacity of Indoor Units | 7.8 – 23.2 kW |
| Power Source | Phase | Single phase 1 |
| Voltage | 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 15.5 kW |
| Nominal Heating | 15.5 kW | |
| Max. Heating | 18.0 kW | |
| Input Power | Cooling | 4.18 kW |
| Heating | 3.50 kW | |
| Nominal Heating | 3.50 kW | |
| Max. Heating | 4.26 kW | |
| EER | Cooling | 3.71 W/W |
| COP | Nominal Heating | 4.43 W/W |
| Max. Heating | 4.23 W/W | |
| Airflow Rate | 6900 m³/h | |
| Sound Pressure Level*2 | Cooling | 53 dB(A) |
| Heating | 56 dB(A) | |
| Sound Power Level | Cooling | 66 dB(A) |
| Heating | 69 dB(A) | |
| Max. External Static Pressure | 30 Pa | |
| Compressor Motor Output | 3.75 kW | |
| Heat Exchanger Fin | Blue fin | |
| Net Dimensions | Height | 1334 mm |
| Width | 970 mm | |
| Depth | 370 mm | |
| Net Weight | 119 kg | |
| Refrigerant | Type | R410A |
| Global Warming Potential | 2088 | |
| Charge | 5.3 kg (11.1 CO2eq–T) | |
| Connection Pipe Diameter | Liquid | φ9.52 mm |
| Gas | φ19.05 mm | |
| Total Pipe Length | 180 m | |
| Max. Height Difference
(Outdoor Unit: Upper/Lower) | 50 / 40 m | |
| Operation Range | Cooling | -5 to 46 °CDB |
| Heating | -20 to 21 °CD |
